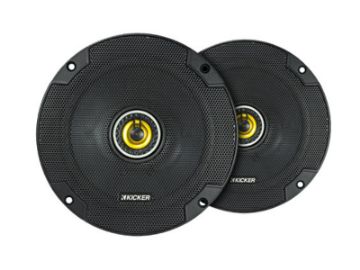

CS Series CSC65
CS-Series 6-1/2-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
| Specifications |
| Woofer Surround Material |
Polyester foam |
| Woofer Cone Material |
Polypropylene |
| Tweeter Design |
Balanced dome |
| Tweeter Dome Material |
PEI [polyether imide |
| Tweeter Magnet Material |
Neodymium |
| Grilles |
Yes |
| Tweeter Protrusion [ in, mm ] |
0 |
| Bottom Mount Depth [ in, mm ] |
2 1/16, 52 |
| Top Mount Depth [ in, mm ] |
1 11/16, 43 |
| Mounting Hole Diameter [ in, mm ] |
4 13/16, 123 |
| Effective Frequency Range [ Hz ] |
40-20k |
| Sensitivity - SPLo [ dB @ 1W, 1m ] |
90 |
| Recommended Amplifier Power [ watts RMS ] |
100 |
| Peak Power [ watts, per ANSI/CTA-2031-A ] |
300 |
| DC Resistance [ ohm ] |
3.3 |
| Tweeter Size [ in, mm ] |
1/2, 13 |
| Woofer Size [ in, mm ] |
6 1/2, 160 |
| Speaker Design |
2 - way |
